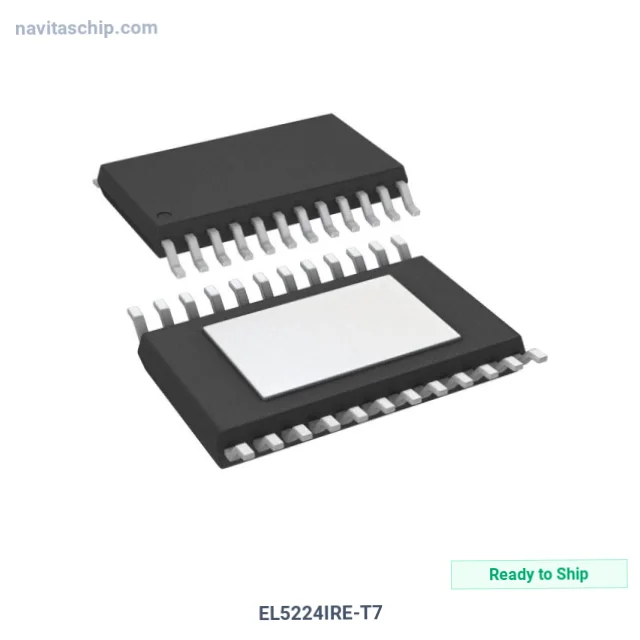

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EL5224IRE-T7 |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1061366 |
| Description | IC BUFFER 8 CIRCUIT 24HTSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 8 |
| Output Type | Rail-to-Rail |
| Slew Rate | 15V/µs |
| Gain Bandwidth Product | 8 MHz |
| -3db Bandwidth | 12 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 6.8mA (x8 Channels) |
| Current - Output / Channel | 140 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation EL5224IRE-T7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL5224IRE-T7 is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Buffer 8 Circuit 24htssop, housed in a compact 24-HTSSOP package. Originally developed by Intersil.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Device Package: 24-HTSSOP
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
