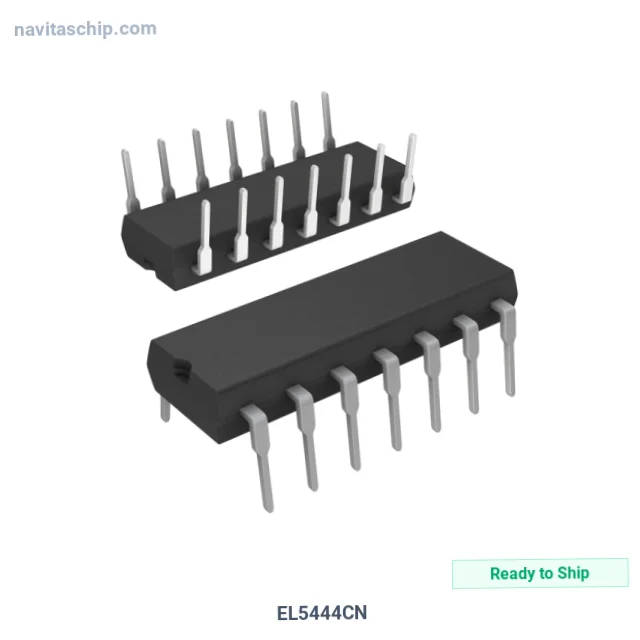

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EL5444CN |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-671981 |
| Description | IC VOLTAGE FEEDBACK 4 CIRC 14DIP |
| Spec | 14-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 200V/µs |
| Gain Bandwidth Product | 60 MHz |
| -3db Bandwidth | 100 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 25 mV |
| Current - Supply | 7mA (x4 Channels) |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation EL5444CN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL5444CN is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Voltage Feedback 4 Circ in 14-Pin DIP Package, housed in a compact 14-PDIP package. Originally developed by Intersil, this component continues to be fully supported.
Facing LMC6082, LMC6042 and LMC6062 CMOS legacy op amps no longer in active production with pin-compatible part shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 14-DIP (0.300", 7.62mm)
- Device Package: 14-PDIP
Applications
Ideal solution for:
- CMOS op amp with sub-microampere quiescent current for always-on battery-powered applications
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
- INA199, INA240 and MAX4376 current sense amplifier replacement for legacy battery management designs
- bridge sensor signal conditioning for strain gauge, pressure transducer, load cell and Wheatstone bridge readout
Why Choose NavitasChip for EL5444CN?
NavitasChip offers cost-effective alternative to authorized distributors for the EL5444CN and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for EL5444CN with regional warehouse support.
EL5444CN - Check our competitive price now.
