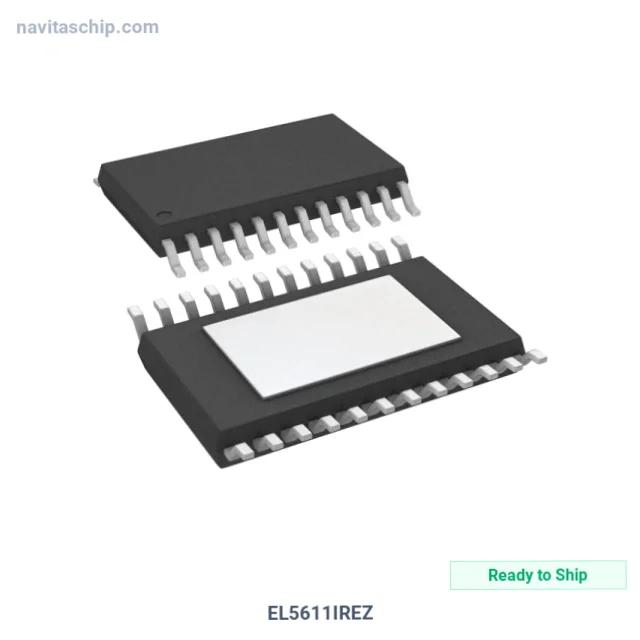

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EL5611IREZ |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1034766 |
| Description | IC OPAMP GP 6 CIRCUIT 24HTSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 6 |
| Output Type | Rail-to-Rail |
| Slew Rate | 75V/µs |
| Gain Bandwidth Product | 32 MHz |
| -3db Bandwidth | 60 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 2.5mA (x6 Channels) |
| Current - Output / Channel | 65 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL5611IREZ is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Operational Amplifier General Purpose 6 Circuit 24htssop, housed in a compact 24-HTSSOP package. Originally developed by Intersil.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Device Package: 24-HTSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
