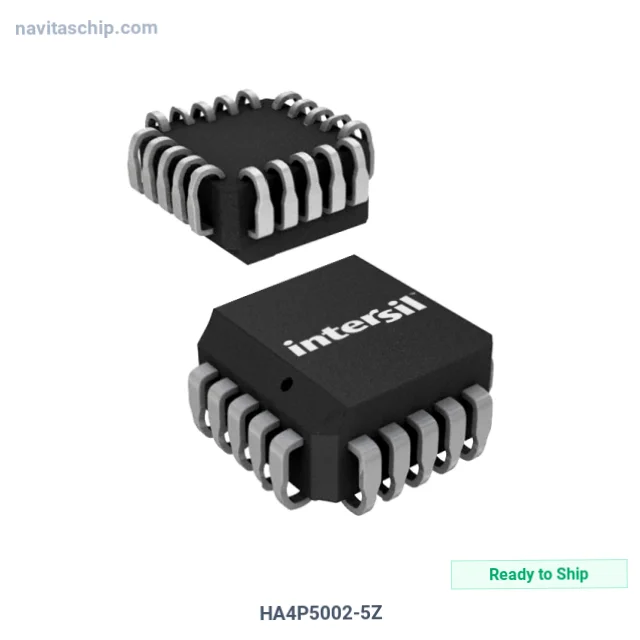

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HA4P5002-5Z |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1062028 |
| Description | IC BUFFER 1 CIRCUIT 20PLCC |
| Spec | 20-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 1 |
| Slew Rate | 1300V/µs |
| -3db Bandwidth | 110 MHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 5 mV |
| Current - Supply | 8.3mA |
| Current - Output / Channel | 220 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-PLCC (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation HA4P5002-5Z Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HA4P5002-5Z is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Buffer 1 Circuit 20plcc, housed in a compact 20-PLCC (9x9) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 75°C
- Mounting: Surface Mount
- Package: 20-LCC (J-Lead)
- Device Package: 20-PLCC (9x9)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
