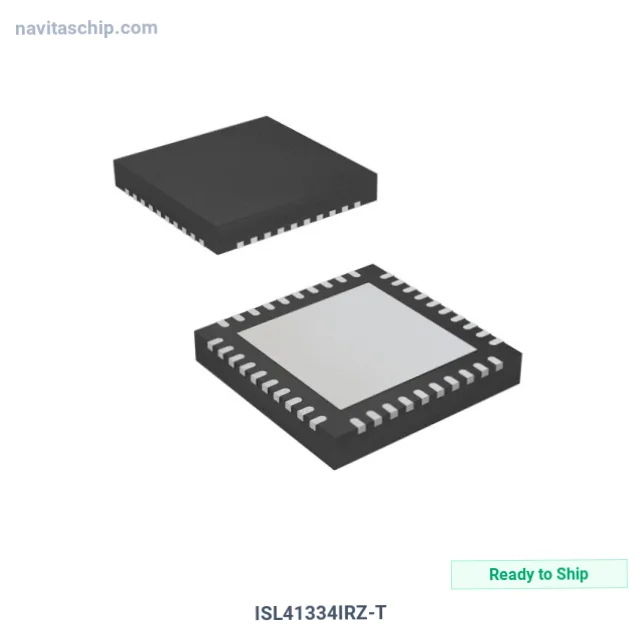

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ISL41334IRZ-T |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1034547 |
| Description | IC TRANSCEIVER FULL 2/2 40QFN |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232, RS422, RS485 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 35 mV |
| Data Rate | 20Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-QFN (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation ISL41334IRZ-T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ISL41334IRZ-T is an Interface Driver Receiver Transceiver IC manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Transceiver Full 2/2 in 40-Pin QFN Package, housed in a compact 40-QFN (6x6) package, with 4.5V ~ 5.5V supply voltage. Originally developed by Intersil.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-QFN (6x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
