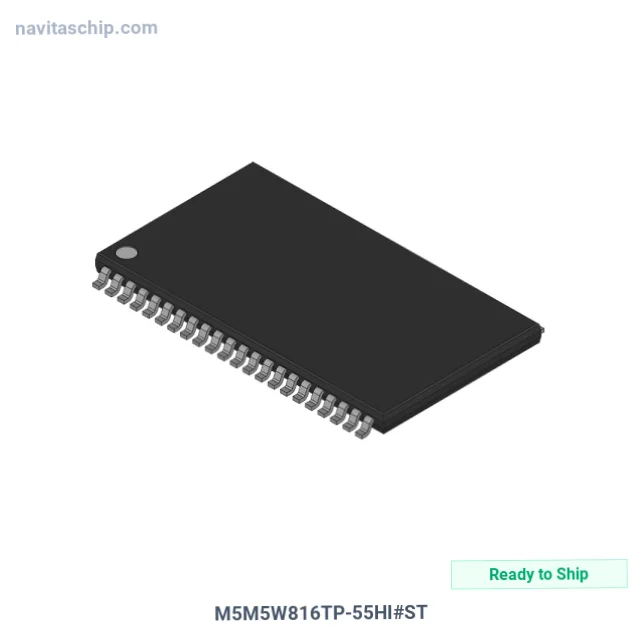

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | M5M5W816TP-55HI#ST |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-12099224 |
| Description | STANDARD SRAM, 512KX16, 55NS |
| Spec | 44-TSOP (0.400", 10.16mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Renesas Electronics Corporation |
| Package | Bulk |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | SRAM |
| Technology | SRAM - Single Port, Asynchronous |
| Memory Size | 8Mbit |
| Memory Organization | 512K x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 55ns |
| Access Time | 55 ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TSOP II |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation M5M5W816TP-55HI#ST Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The M5M5W816TP-55HI#ST is a Memory IC manufactured by Renesas Electronics Corporation (Renesas). Standard SRAM, housed in a compact 44-TSOP II package, with 2.7V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 44-TSOP (0.400", 10.16mm Width)
- Device Package: 44-TSOP II
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
