| Manufacturer Product Number | R5F109AAJSP#X0 |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-5356233 |
| Description | IC MCU 16BIT 16KB FLASH 30LSSOP |
| Spec | 30-LSSOP (0.240\ |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 21 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 8x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-LSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation R5F109AAJSP#X0 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

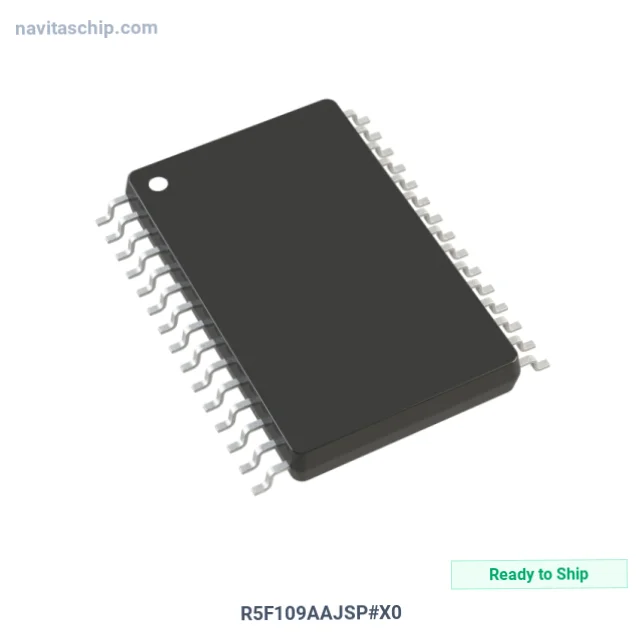

The R5F109AAJSP#X0 is a Microcontroller (MCU) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Microcontroller 16bit 16kb Flash Memory 30lssop, housed in a compact 30-LSSOP package.
