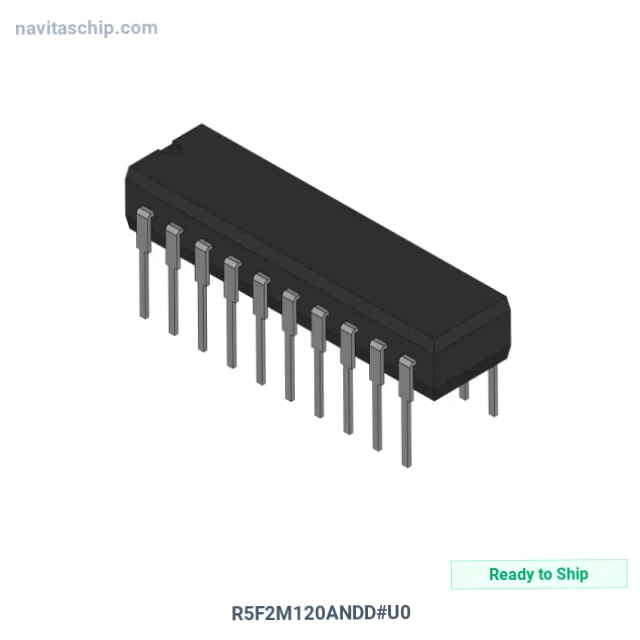

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | R5F2M120ANDD#U0 |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-11515300 |
| Description | IC MCU 16BIT 2KB FLASH 20DIP |
| Spec | 20-DIP (0.300\ |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 17 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 6x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation R5F2M120ANDD#U0 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The R5F2M120ANDD#U0 is a Microcontroller (MCU) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Microcontroller 16bit 2kb Flash Memory in 20-Pin DIP Package, housed in a compact 20-PDIP package.
Key Technical Specifications
- Operating Temperature: -20°C ~ 85°C (TA)
- Mounting: Through Hole
- Package: 20-DIP (0.300\
- Device Package: 20-PDIP
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
