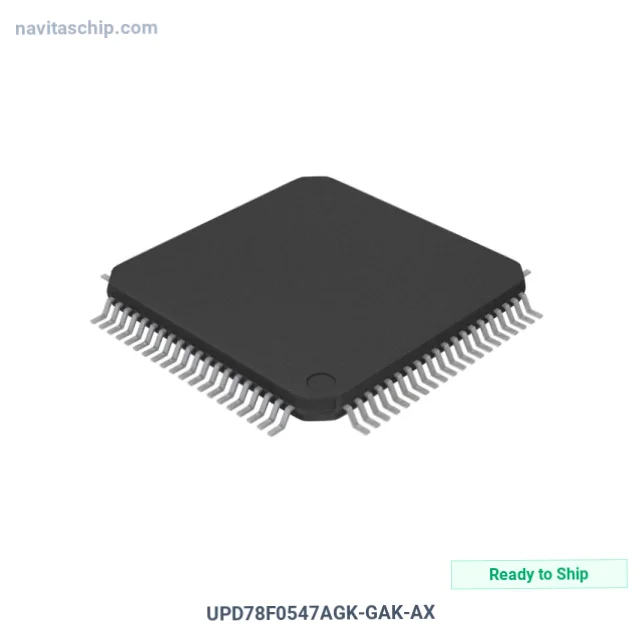

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | UPD78F0547AGK-GAK-AX |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-2362533 |
| Description | IC MCU 8BIT 128KB FLASH 80LQFP |
| Spec | 80-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tray |
| Product Status | Not For New Designs |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 71 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 7K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation UPD78F0547AGK-GAK-AX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The UPD78F0547AGK-GAK-AX is a Microcontroller (MCU) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Microcontroller 8bit 128kb Flash Memory in 80-Pin LQFP Package, housed in a compact 80-LQFP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 80-LQFP
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
