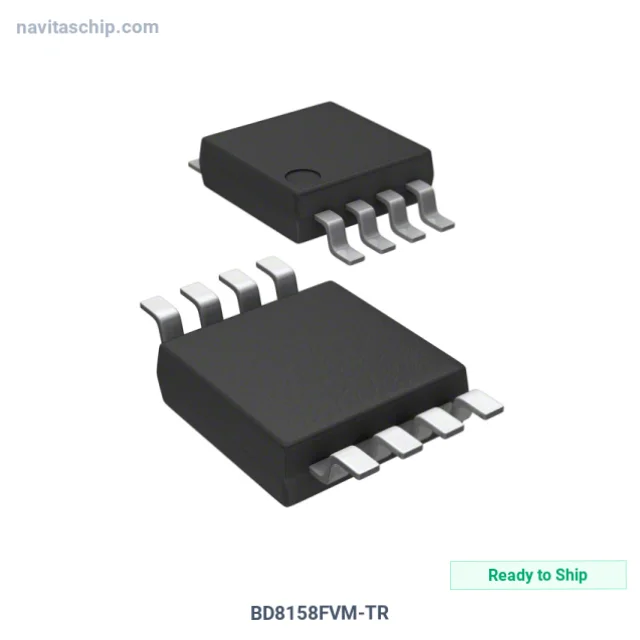

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BD8158FVM-TR |
| Manufacturer | Rohm Semiconductor |
| NavitasChip Part Number | NAVI-1957247 |
| Description | IC REG BST SEPIC ADJ 1.4A 8MSOP |
| Spec | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Rohm Semiconductor |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.1V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.1V |
| Voltage - Output (Max) | 15V (Switch) |
| Current - Output | 1.4A (Switch) |
| Frequency - Switching | 600kHz, 1.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Rohm Semiconductor BD8158FVM-TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BD8158FVM-TR is a DC-DC Switching Voltage Regulator manufactured by Rohm Semiconductor (ROHM). Integrated Circuit Regulator Bst Sepic Adjustable 1.4a in 8-Pin MSOP Package, housed in a compact 8-MSOP package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-VSSOP, 8-MSOP (0.110", 2.80mm Width)
- Device Package: 8-MSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
