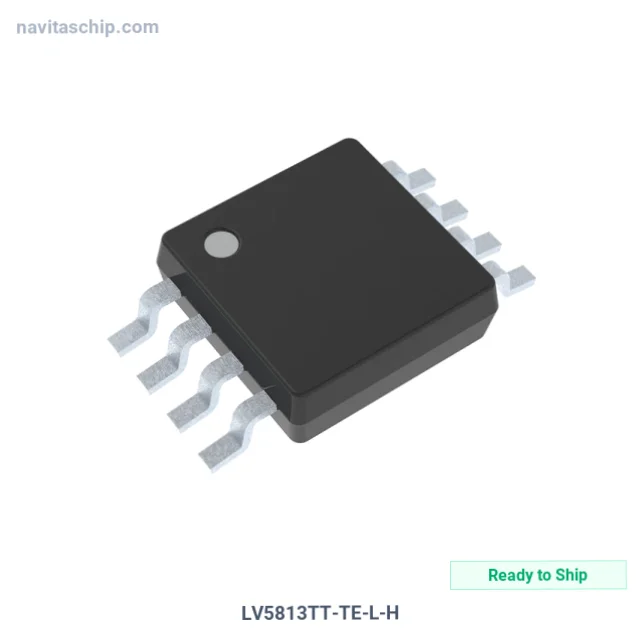

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Sanyo |
| Package | Bulk |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 18V |
| Current - Output | 1.5A |
| Frequency - Switching | 370kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sanyo LV5813TT-TE-L-H Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LV5813TT-TE-L-H is a DC-DC Switching Voltage Regulator manufactured by Sanyo. Integrated Circuit Regulator Buck Adjustable 1.5a in 8-Pin MSOP Package, housed in a compact 8-MSOP package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -20°C ~ 80°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-MSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
