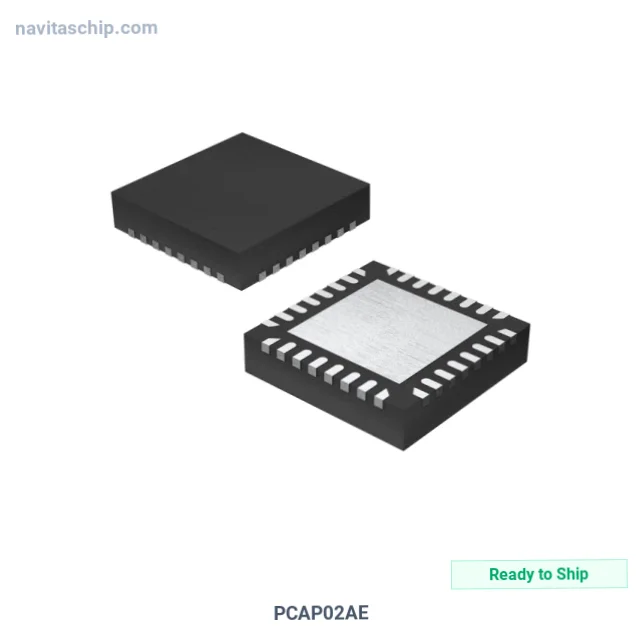

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | ScioSense |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 8 |
| Sampling Rate (Per Second) | 500k |
| Data Interface | I2C, SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.1V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | ScioSense PCAP02AE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCAP02AE is an Audio Codec and Special-Purpose Data Converter IC manufactured by ScioSense. Integrated Circuit Cap to Dgt Convrt 500k in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 2.1V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.1V ~ 3.6V
- Channels: 8
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
