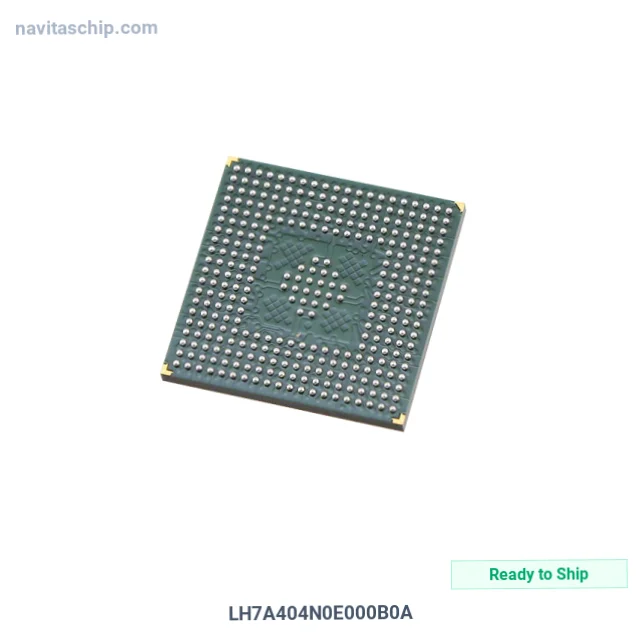

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LH7A404N0E000B0A |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-9655051 |
| Description | IC MCU 32BIT ROMLESS 324CABGA |
| Spec | 324-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Sharp Microelectronics |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM9® |
| Core Size | 32-Bit |
| Speed | 200MHz |
| Connectivity | Audio Codec, EBI/EMI, IrDA, Memory Card, SmartCard, SSP, UART/USART, USB |
| Peripherals | AC'97, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Type | ROMless |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics LH7A404N0E000B0A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LH7A404N0E000B0A is a Microcontroller (MCU) manufactured by Sharp Microelectronics (Sharp). Integrated Circuit Microcontroller 32bit Romless in 324-Pin BGA Package, housed in a compact 324-LFBGA package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 324-LFBGA
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
