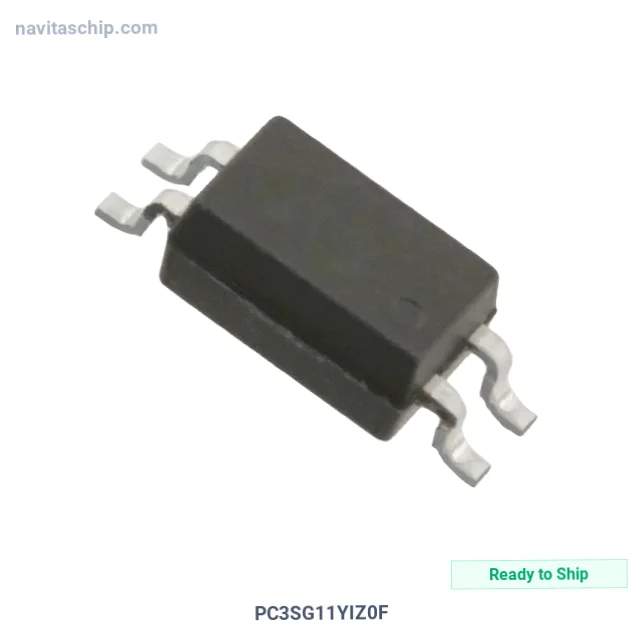

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PC3SG11YIZ0F |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-720409 |
| Description | OPTOISOLTR 3.75KV TRIAC 1CH 4SMD |
| Spec | 4-SOIC (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 100V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 50 mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-SMD |
| Approval Agency | UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics PC3SG11YIZ0F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PC3SG11YIZ0F is an Optocoupler manufactured by Sharp Microelectronics (Sharp). Optocoupler Isolator 3.75kV Triac 1ch 4smd, housed in a compact 4-SMD package.
In today's market, photocoupler availability can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -30°C ~ 100°C
- Mounting: Surface Mount
- Package: 4-SOIC (0.173", 4.40mm Width)
- Device Package: 4-SMD
Applications
Widely adopted for:
- motor drives
- solar inverters
- power supplies
- signal isolation
- safety isolation
Why Choose NavitasChip for PC3SG11YIZ0F?
NavitasChip offers cost-effective alternative to authorized distributors for the PC3SG11YIZ0F and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
PC3SG11YIZ0F sourced and shipped via our Asia-Pacific distribution network.
PC3SG11YIZ0F - Check our competitive price now.
