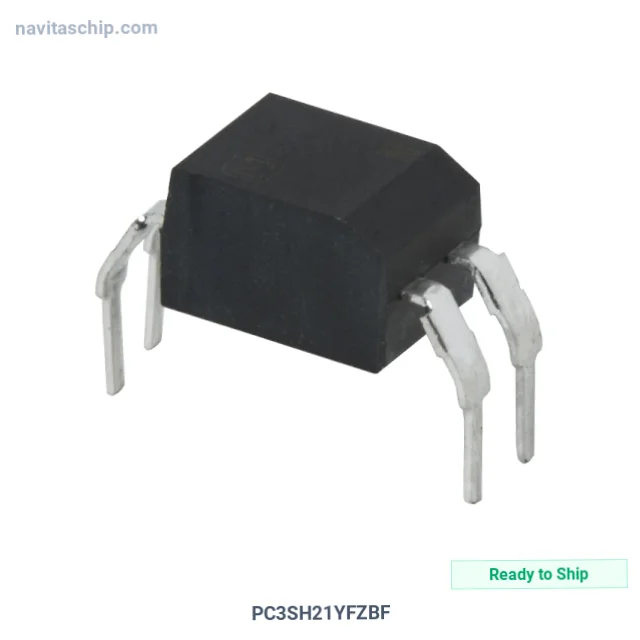

| Manufacturer Product Number | PC3SH21YFZBF |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-857102 |
| Description | OPTOISOLATOR 5KV TRIAC 1CH 4-DIP |
| Spec | 4-DIP (0.400", 10.16mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 7mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 4-DIP |
| Approval Agency | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics PC3SH21YFZBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PC3SH21YFZBF is an Optocoupler manufactured by Sharp Microelectronics (Sharp). Optocoupler Isolator 5kV Triac 1ch in 4-Pin DIP Package, housed in a compact 4-DIP package.
In today's market, optocoupler lead times can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -30°C ~ 100°C
- Mounting: Through Hole
- Package: 4-DIP (0.400", 10.16mm)
- Device Package: 4-DIP
Applications
Perfect for:
- motor drives
- industrial control
- isolation feedback
Why Choose NavitasChip for PC3SH21YFZBF?
NavitasChip offers cost-saving procurement for the PC3SH21YFZBF and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
