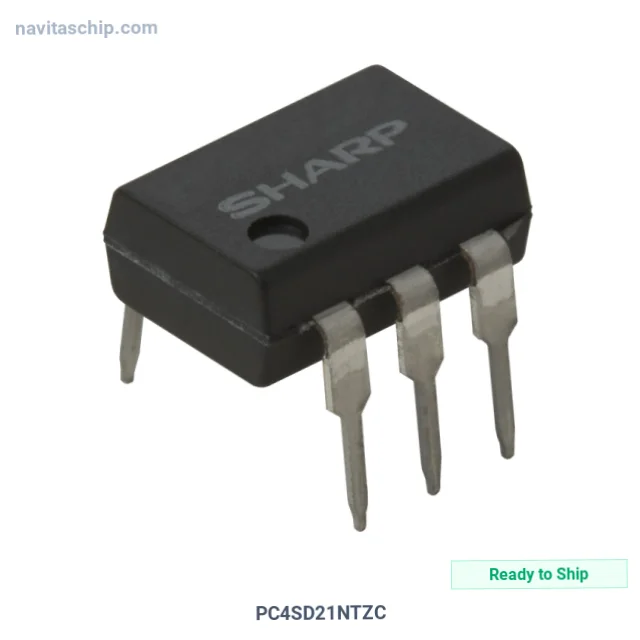

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PC4SD21NTZC |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-457926 |
| Description | OPTOISOLATOR 5KV TRIAC 1CH 6-DIP |
| Spec | 6-DIP (0.300", 7.62mm), 5 Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 6-DIP |
| Approval Agency | CSA, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics PC4SD21NTZC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PC4SD21NTZC is an Optocoupler manufactured by Sharp Microelectronics (Sharp). Optocoupler Isolator 5kV Triac 1ch in 6-Pin DIP Package, housed in a compact 6-DIP package. Commercial temperature range (0°C to +70°C).
Facing photocoupler availability? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -30°C ~ 100°C
- Mounting: Through Hole
- Package: 6-DIP (0.300", 7.62mm), 5 Leads
- Device Package: 6-DIP
Applications
Ideal solution for:
- industrial fieldbus
- motor drives
- isolation feedback
Why Choose NavitasChip for PC4SD21NTZC?
NavitasChip offers global surplus sourcing network for the PC4SD21NTZC and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for PC4SD21NTZC, serving customers in Netherlands, Spain, and worldwide.
PC4SD21NTZC - Get instant quote online.
