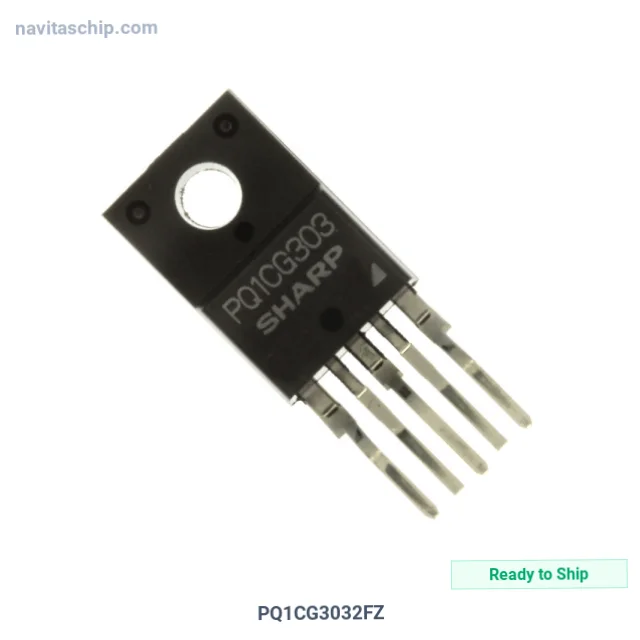

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PQ1CG3032FZ |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-458153 |
| Description | IC REG BUCK ADJ 3.5A TO220-5 |
| Spec | TO-220-5 Formed Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Sharp Microelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | ±1.26V |
| Voltage - Output (Max) | 35V, -30V |
| Current - Output | 3.5A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-5 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics PQ1CG3032FZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PQ1CG3032FZ is a DC-DC Switching Voltage Regulator manufactured by Sharp Microelectronics (Sharp). Integrated Circuit Regulator Buck Adjustable 3.5a in 5-Pin To220 Package, housed in a compact TO-220-5 package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -20°C ~ 80°C (TA)
- Mounting: Through Hole
- Package: TO-220-5 Formed Leads
- Device Package: TO-220-5
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
