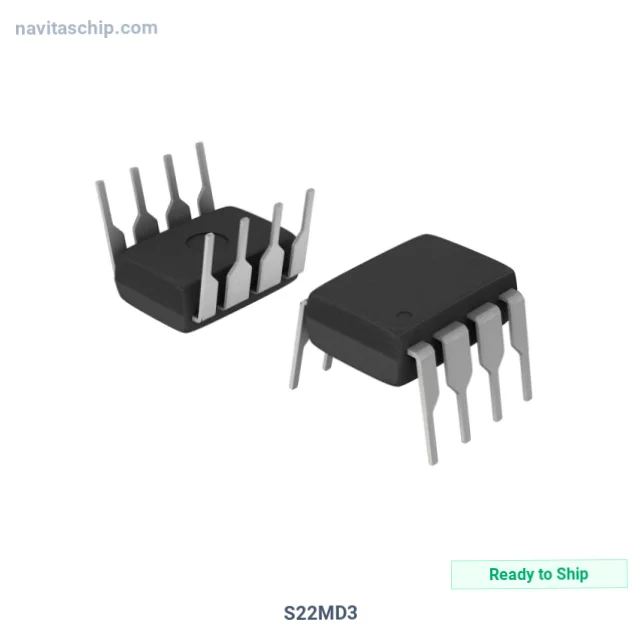

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S22MD3 |
| Manufacturer | Sharp Microelectronics |
| NavitasChip Part Number | NAVI-458311 |
| Description | OPTOISOLATOR 2.5KV SCR 2CH 8-DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Output Type | SCR |
| Zero Crossing Circuit | No |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 3V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 200 mA |
| Current - Hold (Ih) | 1mA |
| Turn On Time | 20µs |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Sharp Microelectronics S22MD3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S22MD3 is an Optocoupler manufactured by Sharp Microelectronics (Sharp). Optocoupler Isolator 2.5kV Scr 2-Channel in 8-Pin DIP Package, housed in a compact 8-DIP package.
Key Technical Specifications
- Output Type: SCR
- Channels: 2
- Operating Temperature: -30°C ~ 100°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-DIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
