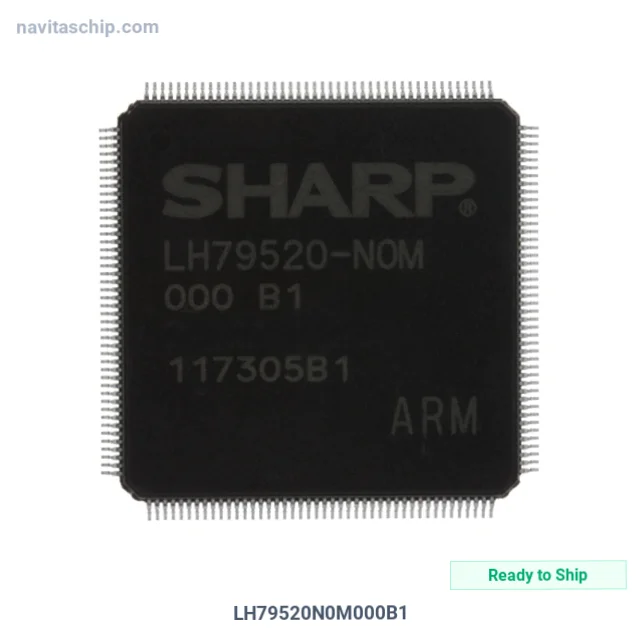

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LH79520N0M000B1 |
| Manufacturer | SHARP/Socle Technology |
| NavitasChip Part Number | NAVI-521816 |
| Description | IC MCU 32BIT ROMLESS 176LQFP |
| Spec | 176-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | SHARP/Socle Technology |
| Package | Tray |
| Product Status | Discontinued at |
| Core Processor | ARM7® |
| Core Size | 32-Bit |
| Speed | 77.4MHz |
| Connectivity | IrDA, Microwire, SPI, SSP, UART/USART |
| Peripherals | DMA, LCD, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Type | ROMless |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | SHARP/Socle Technology LH79520N0M000B1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LH79520N0M000B1 is a Microcontroller (MCU) manufactured by SHARP/Socle Technology (Sharp-Socle). Integrated Circuit Microcontroller 32bit Romless in 176-Pin LQFP Package, housed in a compact 176-LQFP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
