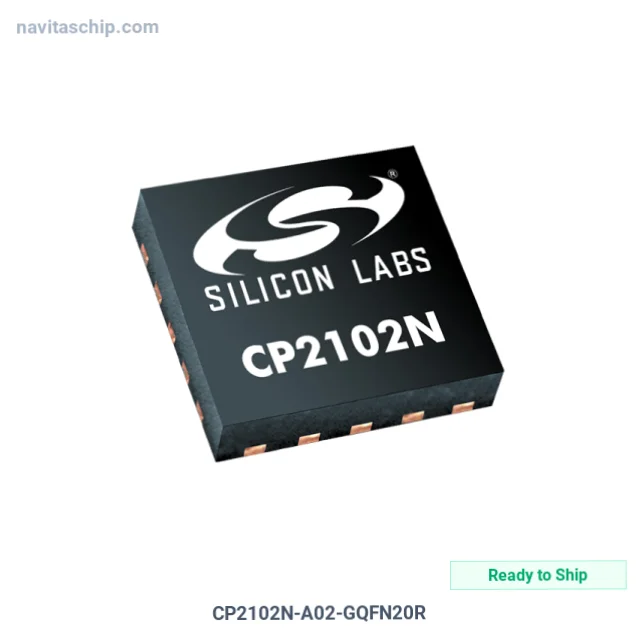

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CP2102N-A02-GQFN20R |
| Manufacturer | Silicon Labs |
| NavitasChip Part Number | NAVI-9863478 |
| Description | IC USB TO UART BRIDGE QFN20 |
| Date Code (D/C) | 25+ |
| Spec | 20-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Silicon Labs |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | USB |
| Function | Bridge, USB to UART |
| Interface | UART |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 9.5mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 20-QFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Silicon Labs CP2102N-A02-GQFN20R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CP2102N-A02-GQFN20R is an Interface Controller IC manufactured by Silicon Labs (SiLabs). Integrated Circuit USB to UART Bridge in 20-Pin QFN Package, housed in a compact 20-QFN (3x3) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: UART
- Operating Temperature: -40°C ~ 85°C (TA)
- Package: 20-WFQFN Exposed Pad
- Device Package: 20-QFN (3x3)
- RoHS Compliant

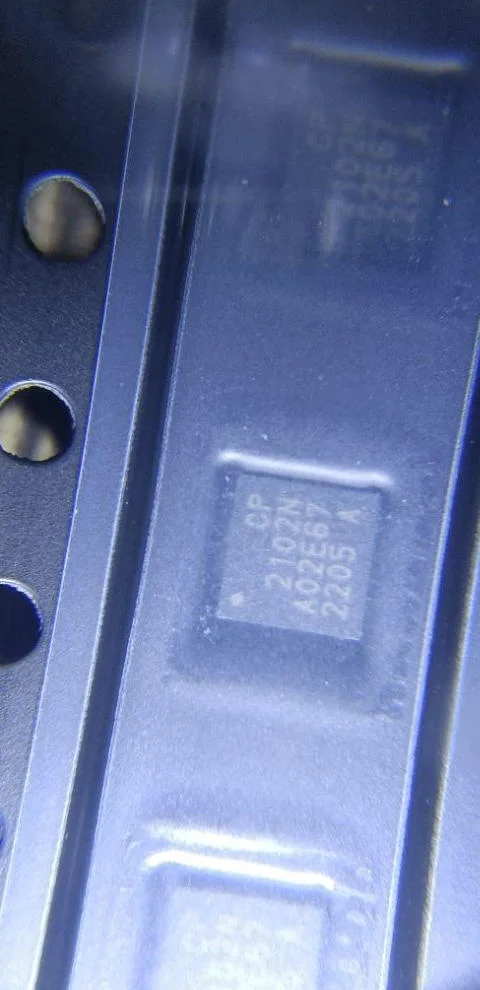

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
