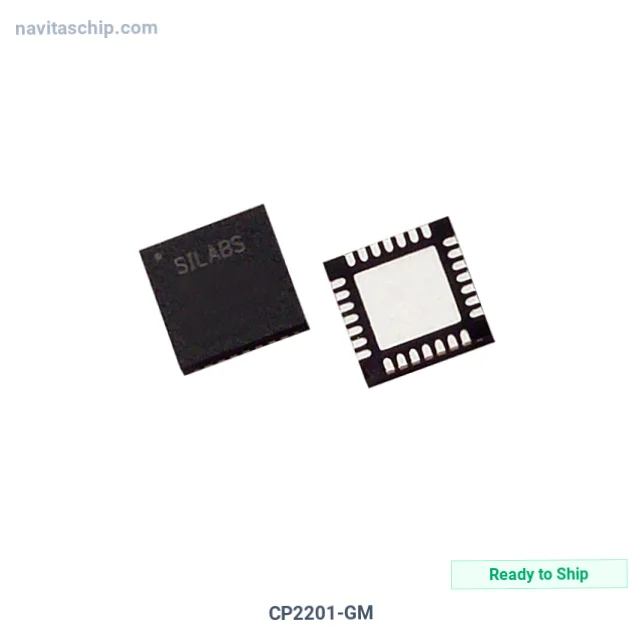

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CP2201-GM |
| Manufacturer | Silicon Labs |
| NavitasChip Part Number | NAVI-1013430 |
| Description | IC ETH CTRLR SNGL-CHIP 28QFN |
| Spec | 28-VFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Silicon Labs |
| Package | Tube |
| Product Status | Obsolete |
| Protocol | Ethernet |
| Function | Controller |
| Interface | Parallel |
| Standards | 10/100/1000 Base-T PHY |
| Voltage - Supply | 3.1V ~ 3.6V |
| Current - Supply | 75mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Silicon Labs CP2201-GM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CP2201-GM is an Interface Controller IC manufactured by Silicon Labs (SiLabs). Integrated Circuit Ethernet Ctrlr Single-Chip in 28-Pin QFN Package, housed in a compact 28-QFN (5x5) package, with 3.1V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.1V ~ 3.6V
- Interface: Parallel
- Operating Temperature: -40°C ~ 85°C
- Package: 28-VFQFN Exposed Pad
- Device Package: 28-QFN (5x5)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
