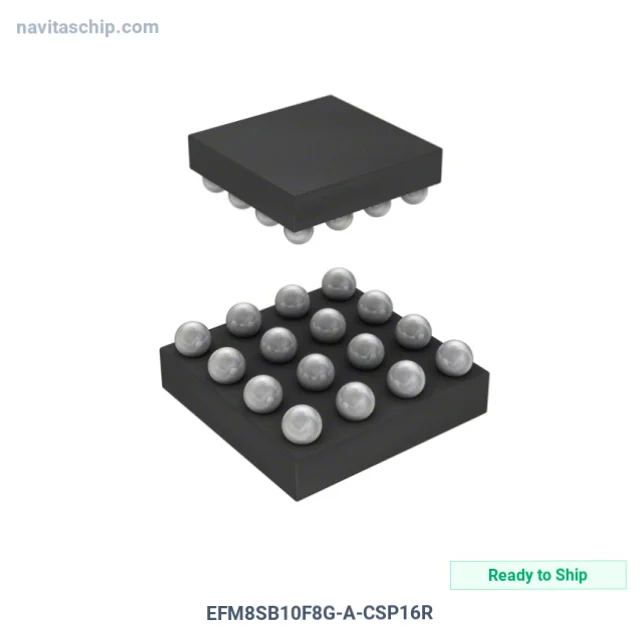

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EFM8SB10F8G-A-CSP16R |
| Manufacturer | Silicon Labs |
| NavitasChip Part Number | NAVI-5358119 |
| Description | IC MCU 8BIT 8KB FLASH 16CSP |
| Spec | 16-UFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Silicon Labs |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | CIP-51 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | I2C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 13 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 9x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-CSP (1.78x1.66) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Silicon Labs EFM8SB10F8G-A-CSP16R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EFM8SB10F8G-A-CSP16R is a Microcontroller (MCU) manufactured by Silicon Labs (SiLabs). Integrated Circuit Microcontroller 8bit 8kb Flash Memory in 16-Pin Csp Package, housed in a compact 16-CSP (1.78x1.66) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 16-UFBGA, WLCSP
- Device Package: 16-CSP (1.78x1.66)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
