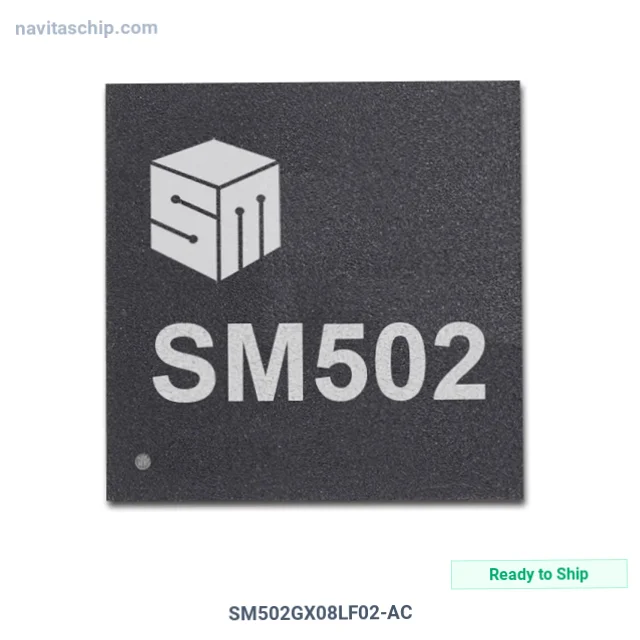

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SM502GX08LF02-AC |
| Manufacturer | Silicon Motion, Inc. |
| NavitasChip Part Number | NAVI-9678805 |
| Description | IC MPU 240MHZ 297BGA |
| Spec | 297-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Silicon Motion, Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | SM502 |
| Number of Cores/Bus Width | 1 Core |
| Speed | 240MHz |
| RAM Controllers | SDR |
| Graphics Acceleration | Yes |
| USB | USB 1.1 (1) |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 297-BGA (19x19) |
| Additional Interfaces | PCI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Silicon Motion, Inc. SM502GX08LF02-AC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SM502GX08LF02-AC is an Embedded Processor manufactured by Silicon Motion, Inc. (SMI). Integrated Circuit Microprocessor operating at 240MHz in 297-Pin BGA Package, housed in a compact 297-BGA (19x19) package. Commercial temperature range (0°C to +70°C).
In today's market, production line down can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 297-LFBGA
- Device Package: 297-BGA (19x19)
- RoHS Compliant
Applications
Engineered specifically for:
- embedded systems
- IoT devices
- industrial automation
- professional equipment
- industrial applications
Why Choose NavitasChip for SM502GX08LF02-AC?
NavitasChip offers hard-to-find component sourcing for legacy systems for the SM502GX08LF02-AC and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for SM502GX08LF02-AC with regional warehouse support.
SM502GX08LF02-AC - Request a quote today.
