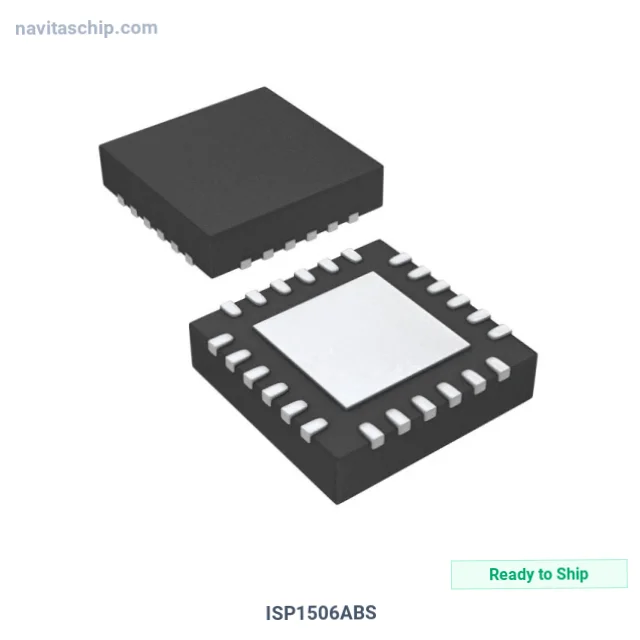

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ISP1506ABS |
| Manufacturer | ST-Ericsson Inc |
| NavitasChip Part Number | NAVI-1023640 |
| Description | IC TRANSCEIVER 1/1 24HVQFN |
| Spec | 24-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | ST-Ericsson Inc |
| Package | Tray |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | USB 2.0 |
| Number of Drivers/Receivers | 1/1 |
| Receiver Hysteresis | 90 mV |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HVQFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | ST-Ericsson Inc ISP1506ABS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ISP1506ABS is an Interface Driver Receiver Transceiver IC manufactured by ST-Ericsson Inc. Integrated Circuit Transceiver 1/1 24hvqfn, housed in a compact 24-HVQFN (4x4) package, with 1.65V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-VFQFN Exposed Pad
- Device Package: 24-HVQFN (4x4)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
