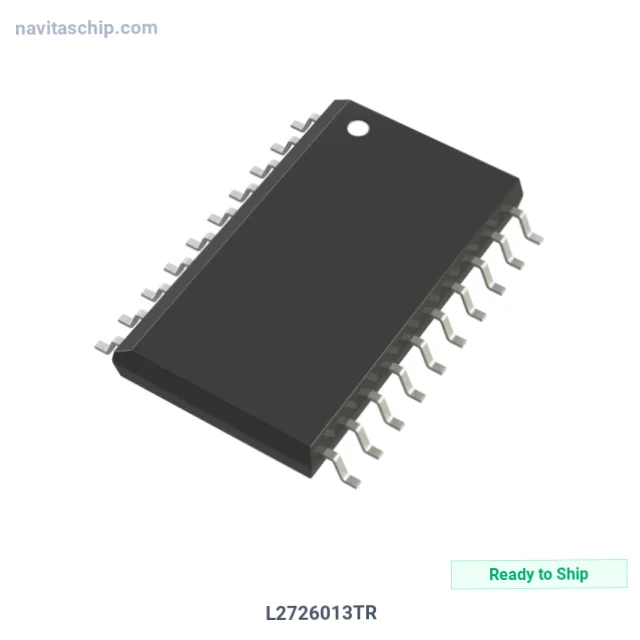

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | L2726013TR |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-677548 |
| Description | IC OPAMP GP 2 CIRCUIT 20SO |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 200 nA |
| Voltage - Input Offset | 10 mV |
| Current - Supply | 10mA |
| Current - Output / Channel | 1.5 A |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 28 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics L2726013TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The L2726013TR is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Integrated Circuit Operational Amplifier General Purpose 2 Circuit 20so, housed in a compact 20-SO package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
