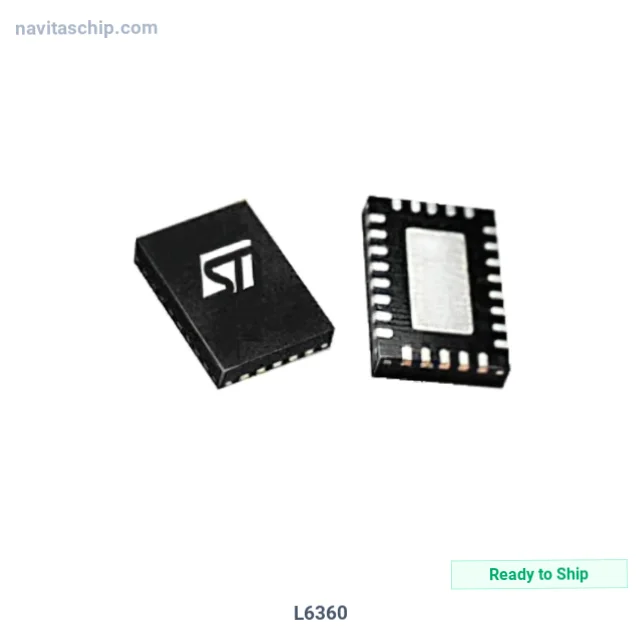

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | L6360 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-3455559 |
| Description | IC TRANSCEIVER 1/1 |
| Spec | 26-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | STMicroelectronics |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | PHY2 |
| Number of Drivers/Receivers | 1/1 |
| Voltage - Supply | 18V ~ 32.5V |
| Operating Temperature | -25°C ~ 125°C |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics L6360 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The L6360 is an Interface Driver Receiver Transceiver IC manufactured by STMicroelectronics (ST). Integrated Circuit Transceiver 1/1, housed in a compact 26-VFQFN Exposed Pad package, with 18V ~ 32.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 18V ~ 32.5V
- Operating Temperature: -25°C ~ 125°C
- Mounting: Surface Mount
- Package: 26-VFQFN Exposed Pad
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
