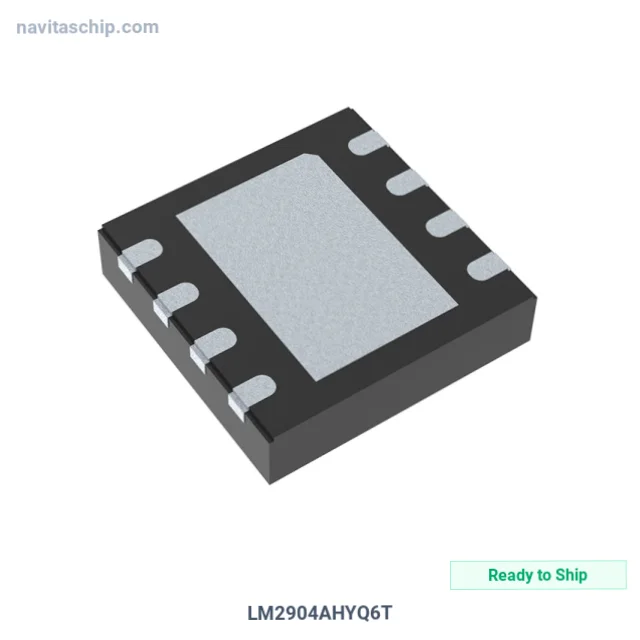

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM2904AHYQ6T |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-22146820 |
| Description | WDFPN 2X2X0.8 8 P 0.5 WET FLK |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Single-Ended |
| Slew Rate | 0.6V/µs |
| Gain Bandwidth Product | 1.1 MHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 350µA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics LM2904AHYQ6T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM2904AHYQ6T is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Wdfpn 2x2x0.8 8 P 0.5 Wet Flk, housed in a compact 8-DFN (2x2) package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 150°C
- Mounting: Surface Mount, Wettable Flank
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
