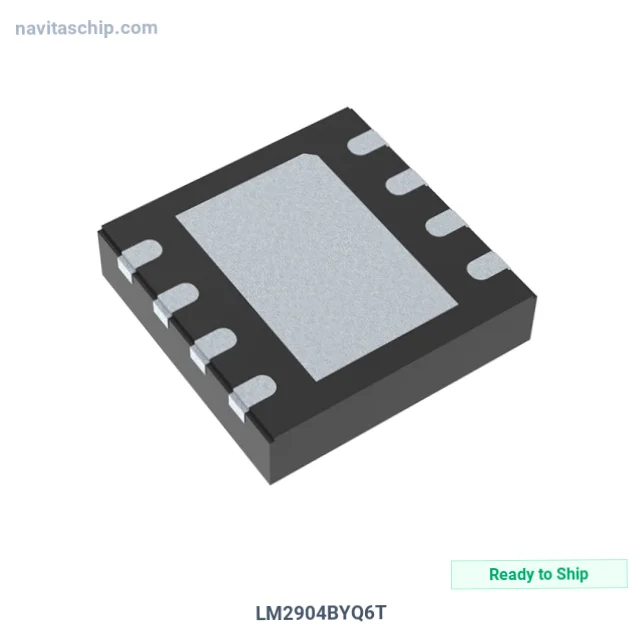

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM2904BYQ6T |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-26254417 |
| Description | STD AMPLIFIERS |
| Spec | 8-WFDFN Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Push-Pull |
| Slew Rate | 0.75V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 150 nA |
| Voltage - Input Offset | 4 mV |
| Current - Supply | 350µA (x2 Channels) |
| Current - Output / Channel | 32 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics LM2904BYQ6T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM2904BYQ6T is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Std Amplifiers, housed in a compact 8-DFN (2x2) package.
Key Technical Specifications
- Output Type: Push-Pull
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
