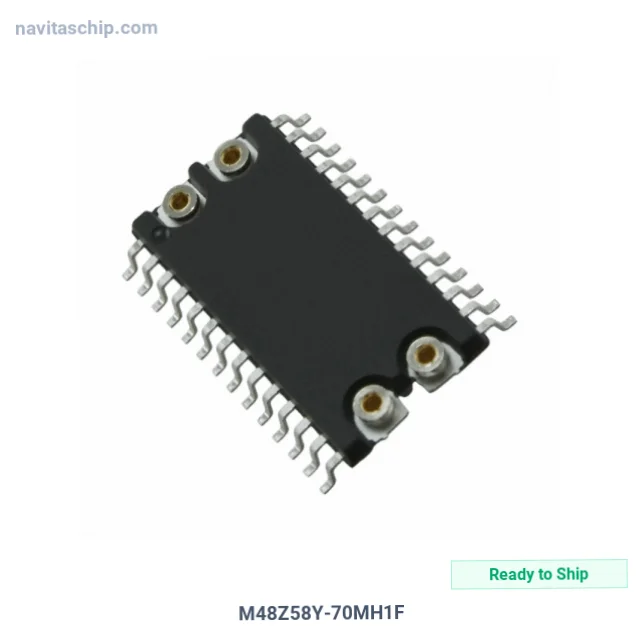

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | M48Z58Y-70MH1F |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-868924 |
| Description | IC NVSRAM 64KBIT PARALLEL 28SOH |
| Spec | 28-SOP (0.350", 8.89mm Width) with SNAPHAT Sockets |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | NVSRAM |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Size | 64Kbit |
| Memory Organization | 8K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOH |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics M48Z58Y-70MH1F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The M48Z58Y-70MH1F is a Memory IC manufactured by STMicroelectronics (ST). Integrated Circuit Nvsram 64kbit Parallel 28soh, housed in a compact 28-SOH package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 28-SOP (0.350", 8.89mm Width) with SNAPHAT Sockets
- Device Package: 28-SOH
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
