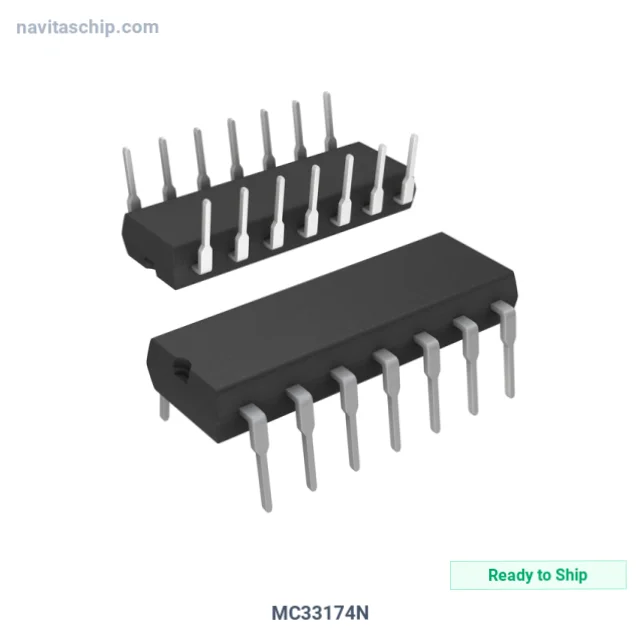

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC33174N |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-1038902 |
| Description | IC OPAMP GP 4 CIRCUIT 14DIP |
| Spec | 14-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 2.1 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 220µA |
| Current - Output / Channel | 27 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 44 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics MC33174N Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC33174N is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Integrated Circuit Operational Amplifier General Purpose 4 Circuit in 14-Pin DIP Package, housed in a compact 14-DIP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Through Hole
- Package: 14-DIP (0.300", 7.62mm)
- Device Package: 14-DIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
