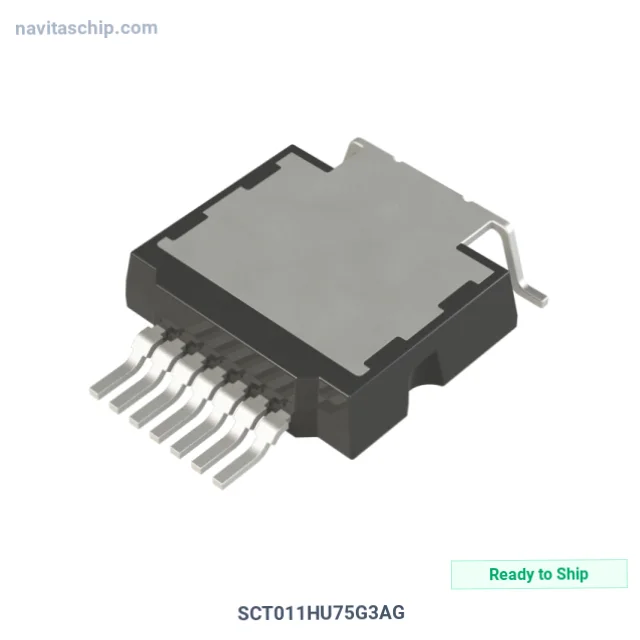

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SCT011HU75G3AG |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-25609339 |
| Description | AUTOMOTIVE-GRADE SILICON CARBIDE |
| Spec | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 750 V |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 80A, 18V |
| Vgs(th) (Max) @ Id | 4.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 154 nC @ 18 V |
| Vgs (Max) | +18V, -5V |
| Input Capacitance (Ciss) (Max) @ Vds | 3860 pF @ 400 V |
| Power Dissipation (Max) | 652W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | HU3PAK |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics SCT011HU75G3AG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SCT011HU75G3AG is a Transistor manufactured by STMicroelectronics (ST). Automotive-Grade Silicon Carbide, housed in a compact HU3PAK package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
- Device Package: HU3PAK
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
