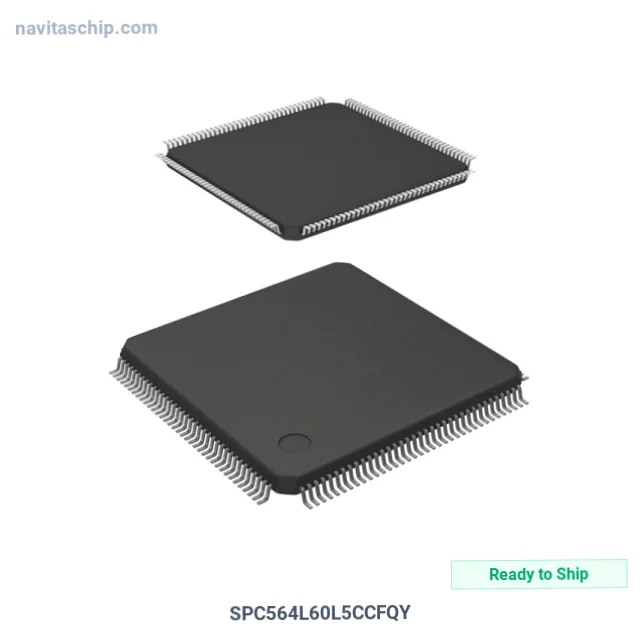

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SPC564L60L5CCFQY |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-10414392 |
| Description | IC MCU 32BIT 1MB FLASH 144LQFP |
| Spec | 144-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | STMicroelectronics |
| Package | Tray |
| Product Status | Active |
| Core Processor | e200z4d |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 96 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.63V |
| Data Converters | A/D 32x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics SPC564L60L5CCFQY Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SPC564L60L5CCFQY is a Microcontroller (MCU) manufactured by STMicroelectronics (ST). Integrated Circuit Microcontroller 32bit 1mb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.
In today's market, EOL (End of Life) notices can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Applications
Essential component for:
- embedded systems
- industrial automation
- wearable devices
- industrial control
Why Choose NavitasChip for SPC564L60L5CCFQY?
NavitasChip offers cost-effective alternative to authorized distributors for the SPC564L60L5CCFQY and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
SPC564L60L5CCFQY available for international procurement with multiple shipping origin options.
SPC564L60L5CCFQY - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
