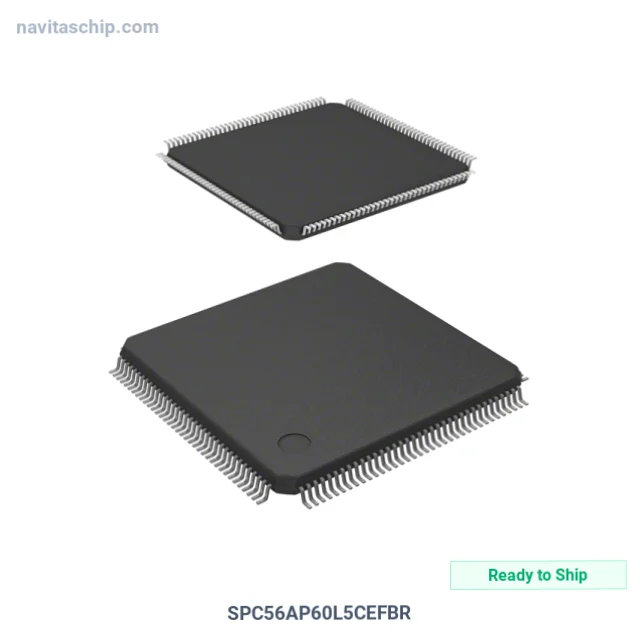

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SPC56AP60L5CEFBR |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-5051226 |
| Description | IC MCU 32BIT 1MB FLASH 144LQFP |
| Spec | 144-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | e200z0h |
| Core Size | 32-Bit |
| Speed | 64MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 80 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 26x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics SPC56AP60L5CEFBR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SPC56AP60L5CEFBR is a Microcontroller (MCU) manufactured by STMicroelectronics (ST). Integrated Circuit Microcontroller 32bit 1mb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.
Don't let long factory lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Applications
Ideal solution for:
- embedded systems
- wearable devices
- industrial control
Why Choose NavitasChip for SPC56AP60L5CEFBR?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the SPC56AP60L5CEFBR and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
SPC56AP60L5CEFBR sourced and shipped via our Asia-Pacific distribution network.
SPC56AP60L5CEFBR - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
