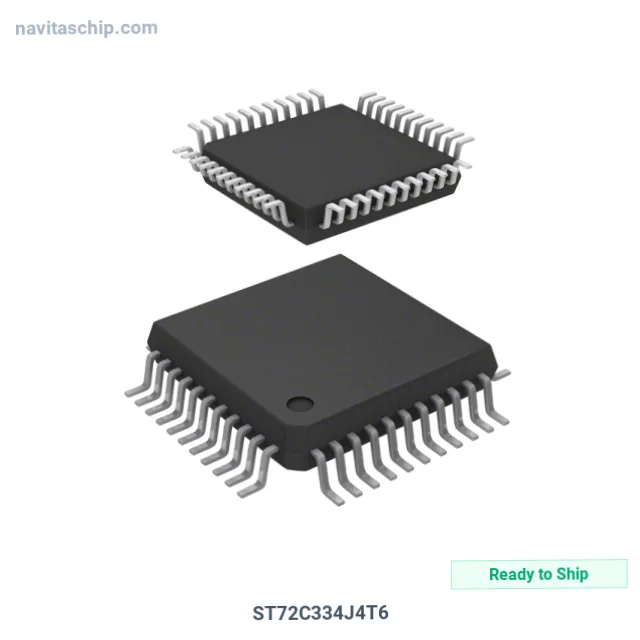

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ST72C334J4T6 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | N96111009 |
| Description | IC MCU 8BIT 16KB FLASH 44LQFP |
| Spec | 44-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | STMicroelectronics |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ST7 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.2V ~ 5.5V |
| Data Converters | A/D 6x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics ST72C334J4T6 Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The ST72C334J4T6 is a Microcontroller (MCU) manufactured by STMicroelectronics (ST). Integrated Circuit Microcontroller 8bit 16kb Flash Memory in 44-Pin LQFP Package, housed in a compact 44-LQFP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 44-LQFP
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
