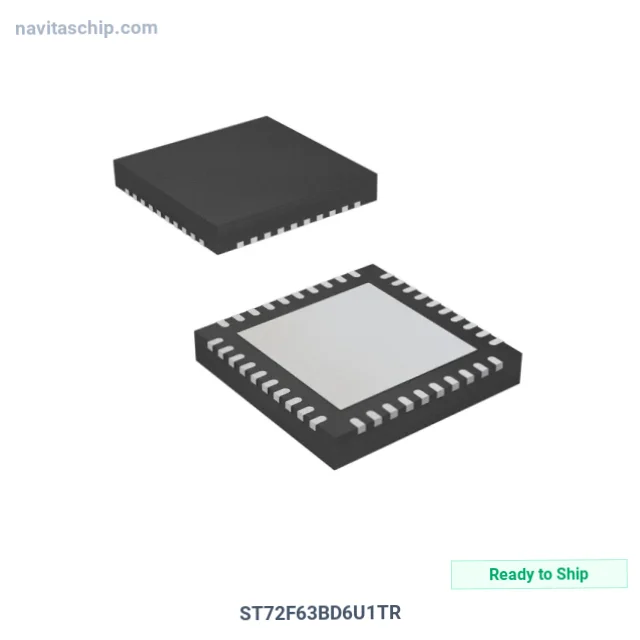

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ST72F63BD6U1TR |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | N96108989 |
| Description | IC MCU 8BIT 32KB FLASH 40QFN |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | ST7 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | I2C, SCI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | A/D 12x8b |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics ST72F63BD6U1TR Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The ST72F63BD6U1TR is a Microcontroller (MCU) manufactured by STMicroelectronics (ST). Integrated Circuit Microcontroller 8bit 32kb Flash Memory in 40-Pin QFN Package, housed in a compact 40-VFQFN Exposed Pad package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
