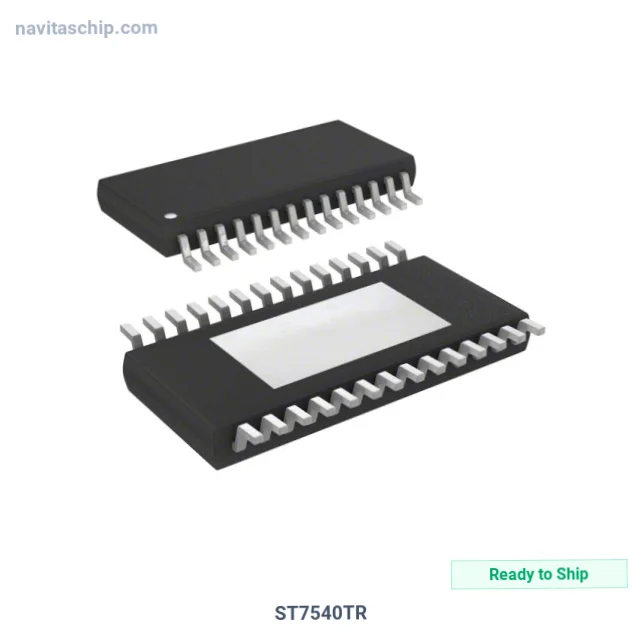

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ST7540TR |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-1200184 |
| Description | IC TRANSCEIVER HALF 1/1 28HTSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Type | Transceiver |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Voltage - Supply | 5V ~ 9V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics ST7540TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ST7540TR is an Interface Driver Receiver Transceiver IC manufactured by STMicroelectronics (ST). Integrated Circuit Transceiver Half 1/1 28htssop, housed in a compact 28-HTSSOP package, with 5V ~ 9V supply voltage.
Key Technical Specifications
- Supply Voltage: 5V ~ 9V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Device Package: 28-HTSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
