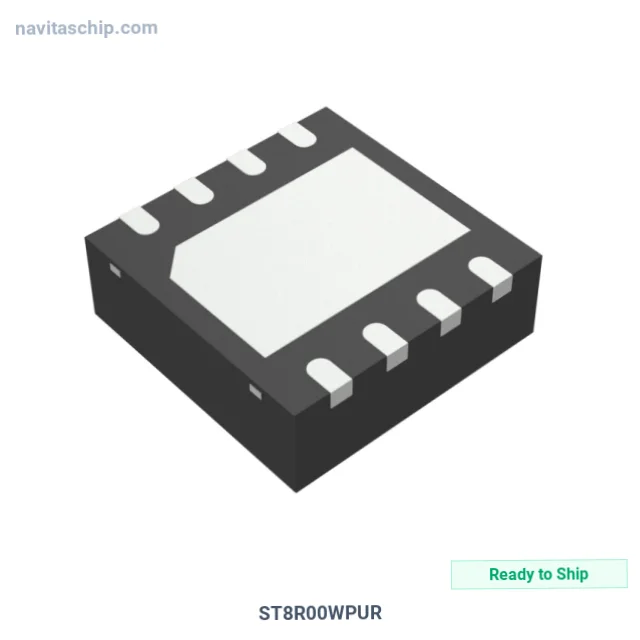

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ST8R00WPUR |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-1653902 |
| Description | IC REG BOOST ADJ 1A 8DFN |
| Spec | 8-VDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 6V |
| Voltage - Output (Max) | 12V |
| Current - Output | 1A (Switch) |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics ST8R00WPUR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ST8R00WPUR is a DC-DC Switching Voltage Regulator manufactured by STMicroelectronics (ST). Integrated Circuit Regulator Boost Adjustable 1a in 8-Pin DFN Package, housed in a compact 8-DFN (4x4) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -25°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 8-VDFN Exposed Pad
- Device Package: 8-DFN (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
