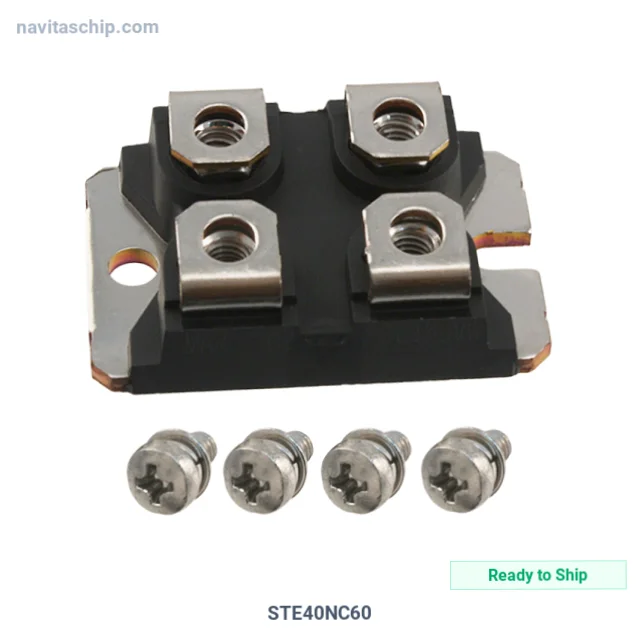

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | STE40NC60 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-654507 |
| Description | MOSFET N-CH 600V 40A ISOTOP |
| Spec | SOT-227-4, miniBLOC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 430 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 11100 pF @ 25 V |
| Power Dissipation (Max) | 460W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | ISOTOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics STE40NC60 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The STE40NC60 is a Transistor manufactured by STMicroelectronics (ST). MOSFET N-Channel 600V breakdown 40A current Isotop.
Key Technical Specifications
- Operating Temperature: 150°C (TJ)
- Mounting: Chassis Mount
- Package: SOT-227-4, miniBLOC
- Device Package: ISOTOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
