| Manufacturer Product Number | STH315N10F7-6 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-4866501 |
| Description | MOSFET N-CH 100V 180A H2PAK-6 |
| Spec | TO-263-7, D2PAK (6 Leads + Tab) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12800 pF @ 25 V |
| Power Dissipation (Max) | 315W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | H2PAK-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics STH315N10F7-6 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

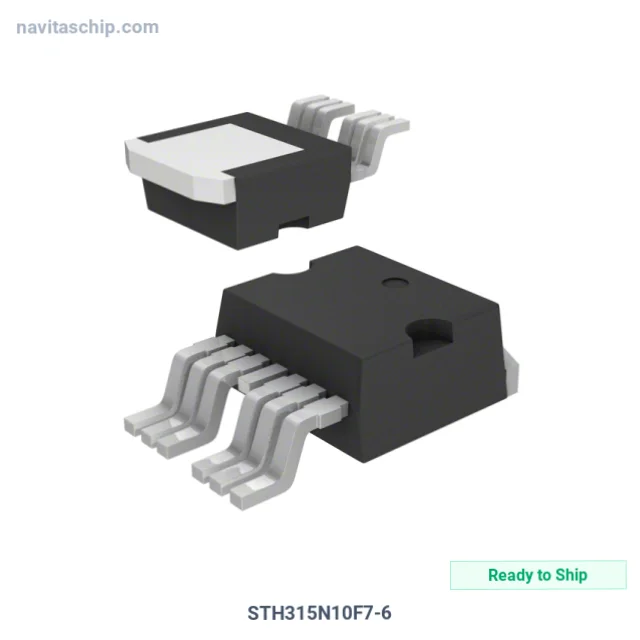

The STH315N10F7-6 is a Transistor manufactured by STMicroelectronics (ST). MOSFET N-Channel 100V breakdown 180A current H2pak-6.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: TO-263-7, D2PAK (6 Leads + Tab)
- Device Package: H2PAK-6
- RoHS Compliant
