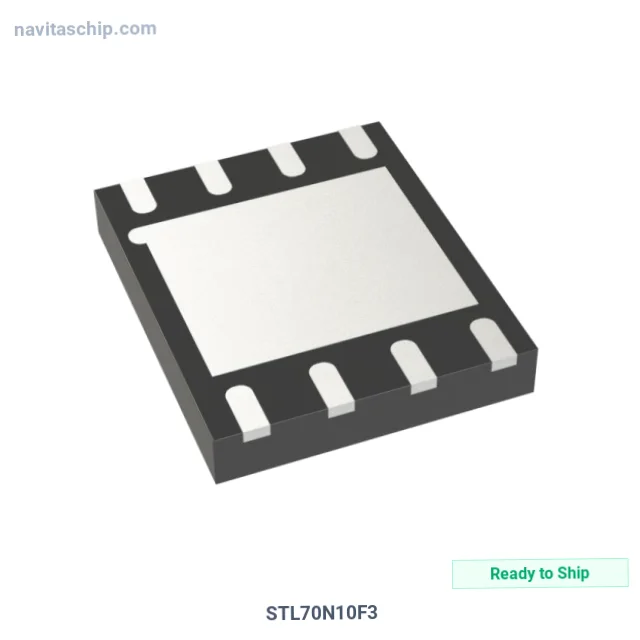

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | STL70N10F3 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-3681467 |
| Description | MOSFET N CH 100V 82A PWRFLAT 5X6 |
| Spec | 8-PowerVDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 82A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 8.4mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3210 pF @ 25 V |
| Power Dissipation (Max) | 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics STL70N10F3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The STL70N10F3 is a Transistor manufactured by STMicroelectronics (ST). MOSFET N Ch 100V breakdown 82A current Pwrflat 5x6, housed in a compact PowerFlat™ (5x6) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerVDFN
- Device Package: PowerFlat™ (5x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
