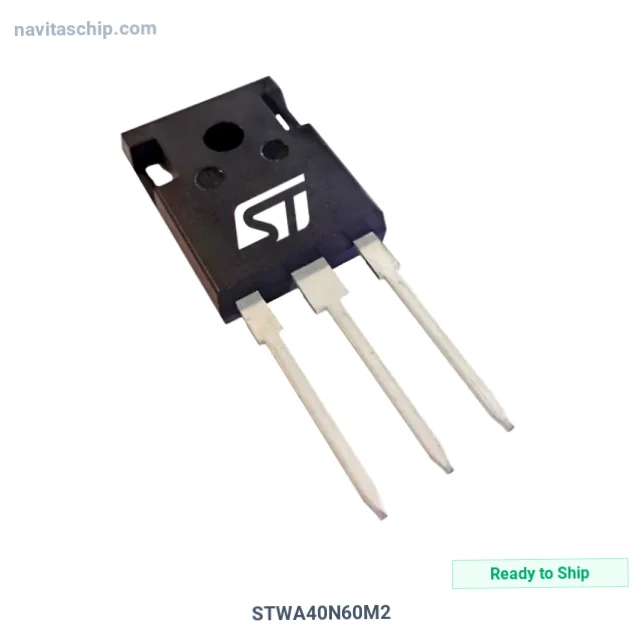

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | STWA40N60M2 |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-7313506 |
| Description | MOSFET N-CHANNEL 600V 34A TO247 |
| Spec | TO-247-3 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±25V |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 Long Leads |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics STWA40N60M2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The STWA40N60M2 is a Transistor manufactured by STMicroelectronics (ST). MOSFET N-Channelannel 600V breakdown 34A current TO-247, housed in a compact TO-247 Long Leads package.
Key Technical Specifications
- Mounting: Through Hole
- Package: TO-247-3
- Device Package: TO-247 Long Leads
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
