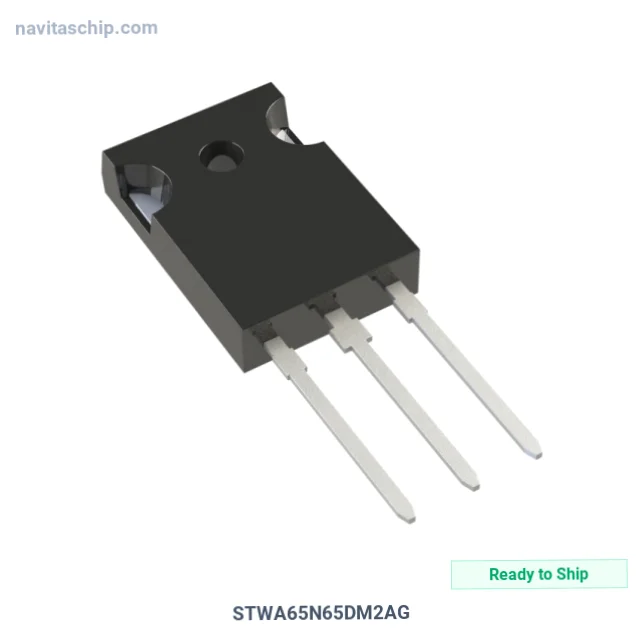

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | STWA65N65DM2AG |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-10414738 |
| Description | MOSFET N-CH 650V 60A TO247 |
| Spec | TO-247-3 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | STMicroelectronics |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 100 V |
| Power Dissipation (Max) | 446W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 Long Leads |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics STWA65N65DM2AG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The STWA65N65DM2AG is a Transistor manufactured by STMicroelectronics (ST). MOSFET N-Channel 650V breakdown 60A current TO-247, housed in a compact TO-247 Long Leads package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Through Hole
- Package: TO-247-3
- Device Package: TO-247 Long Leads
- RoHS Compliant
