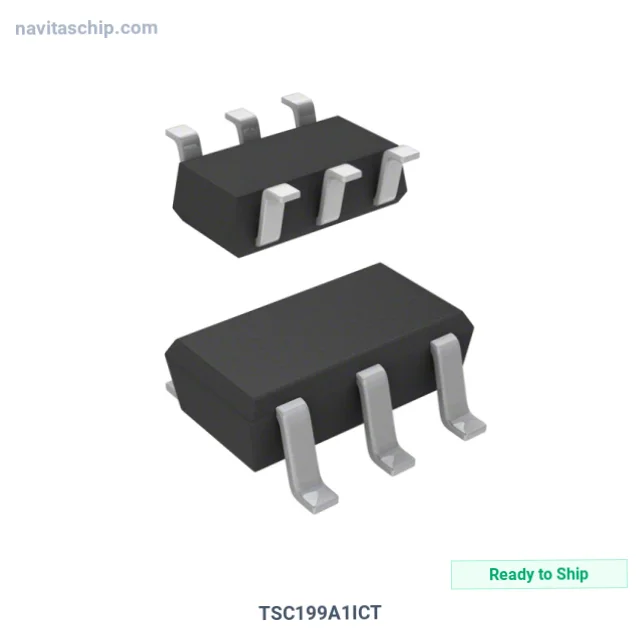

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSC199A1ICT |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-22146713 |
| Description | SOT 323 6LDS |
| Spec | 6-TSSOP, SC-88, SOT-363 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 0.85V/µs |
| -3db Bandwidth | 100 kHz |
| Current - Input Bias | 28 µA |
| Voltage - Input Offset | 150 µV |
| Current - Supply | 65µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics TSC199A1ICT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSC199A1ICT is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). SOT 323 6lds, housed in a compact SC-70-6 package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 6-TSSOP, SC-88, SOT-363
- Device Package: SC-70-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
