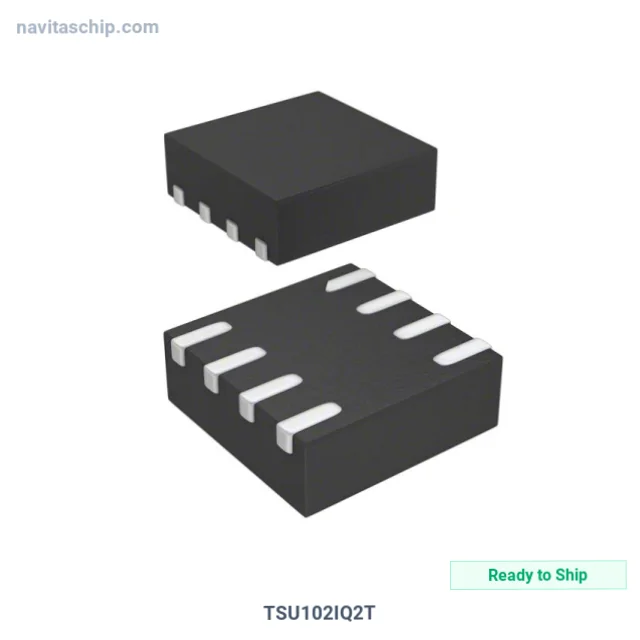

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSU102IQ2T |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-4499609 |
| Description | IC CMOS 2 CIRCUIT 8DFN |
| Spec | 8-WFDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.003V/µs |
| Gain Bandwidth Product | 9 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 650nA (x2 Channels) |
| Current - Output / Channel | 11 mA |
| Voltage - Supply Span (Min) | 1.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics TSU102IQ2T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSU102IQ2T is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Integrated Circuit CMOS 2 Circuit in 8-Pin DFN Package, housed in a compact 8-DFN (2x2) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-WFDFN
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
