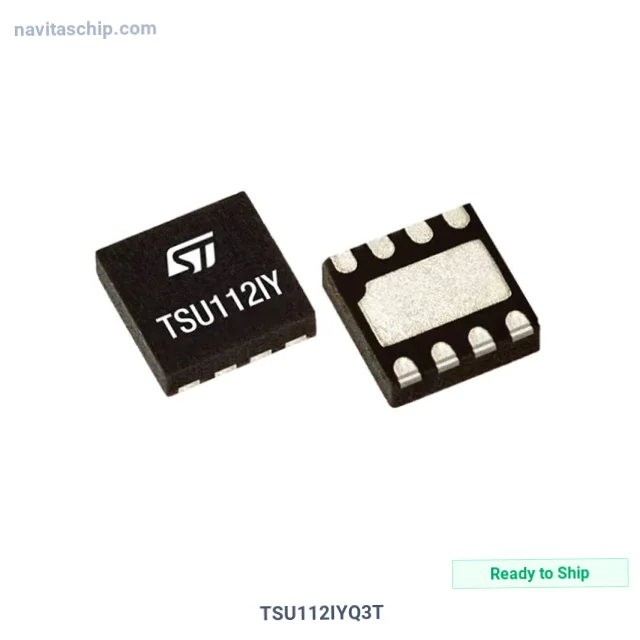

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSU112IYQ3T |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-13986403 |
| Description | IC CMOS 2 CIRCUIT 8DFN |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.0031V/µs |
| Gain Bandwidth Product | 9 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 150 µV |
| Current - Supply | 1µA (x2 Channels) |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 1.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics TSU112IYQ3T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSU112IYQ3T is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Integrated Circuit CMOS 2 Circuit in 8-Pin DFN Package, housed in a compact 8-DFN (2x2) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount, Wettable Flank
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
