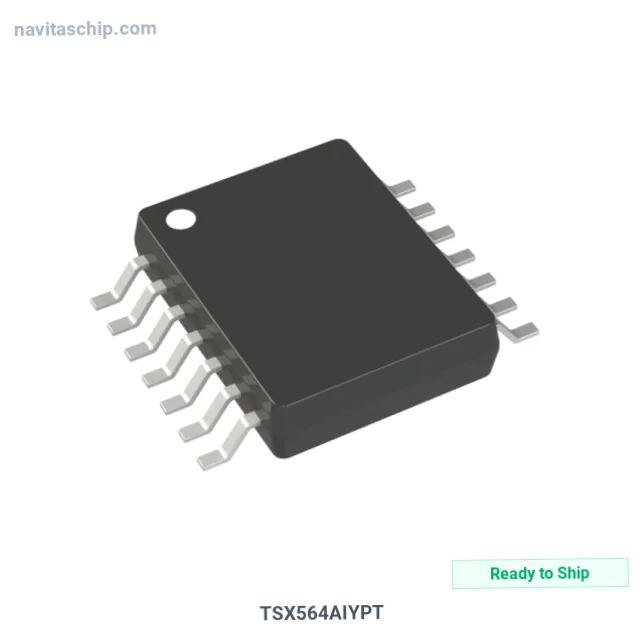

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSX564AIYPT |
| Manufacturer | STMicroelectronics |
| NavitasChip Part Number | NAVI-5872323 |
| Description | IC CMOS 4 CIRCUIT 14TSSOP |
| Spec | 14-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.1V/µs |
| Gain Bandwidth Product | 900 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 600 µV |
| Current - Supply | 250µA |
| Current - Output / Channel | 92 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | STMicroelectronics TSX564AIYPT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSX564AIYPT is an Operational Amplifier (Op Amp) manufactured by STMicroelectronics (ST). Integrated Circuit CMOS 4 Circuit in 14-Pin TSSOP Package, housed in a compact 14-TSSOP package.
