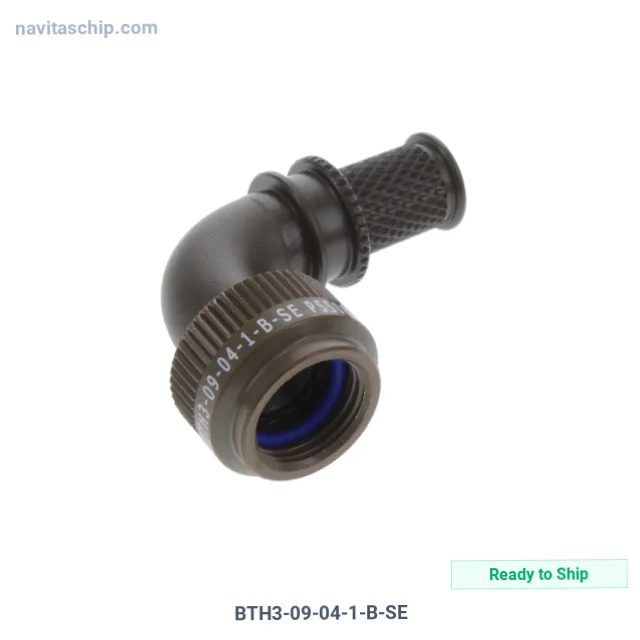

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BTH3-09-04-1-B-SE |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| NavitasChip Part Number | NAVI-11696791 |
| Description | CONN BACKSHELL BANDING SZ9 M12 |
| Spec | - |
| Package | Box |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Package | Box |
| Product Status | Active |
| Type | Backshell, Banding |
| Cable Opening | 0.250" (6.35mm) |
| Diameter - Outside | 0.709" (18.00mm) |
| Shell Size - Insert | 9 |
| Thread Size | M12x1 |
| Cable Exit | 90° |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shielding | Unshielded |
| Color | Olive Drab |
| Features | Bandstrap |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity Aerospace, Defense and Marine BTH3-09-04-1-B-SE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BTH3-09-04-1-B-SE is a Circular Connector manufactured by TE Connectivity Aerospace, Defense and Marine (TE Aero). Backshell Banding, Size 9 M12.
