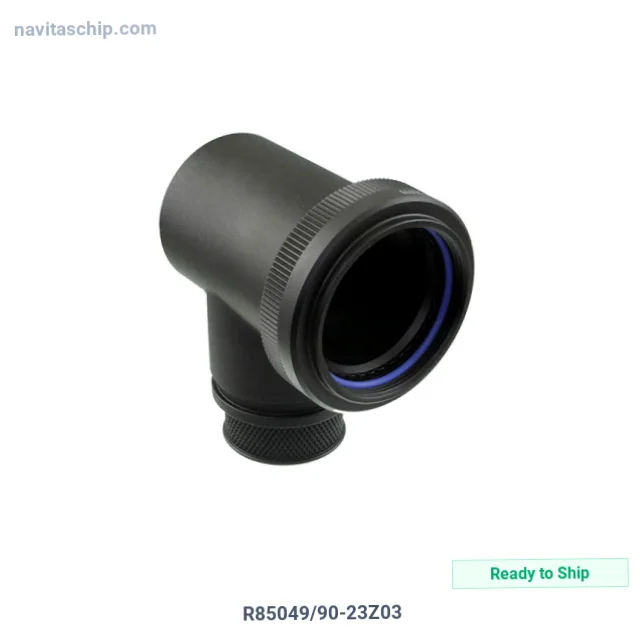

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | R85049/90-23Z03 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| NavitasChip Part Number | NAVI-6068358 |
| Description | CONN BACKSHELL BANDING SZH BLACK |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Package | Bulk |
| Product Status | Active |
| Type | Backshell, Banding |
| Cable Opening | 0.938" (23.83mm) |
| Diameter - Outside | 1.768" (44.91mm) |
| Shell Size - Insert | H |
| Cable Exit | 90° |
| Material | Aluminum |
| Plating | Zinc Nickel |
| Shielding | Shielded |
| Color | Black |
| Features | Self Locking |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity Aerospace, Defense and Marine R85049/90-23Z03 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The R85049/90-23Z03 is a Circular Connector manufactured by TE Connectivity Aerospace, Defense and Marine (TE Aero). Connector Backshell Banding Szh Black.
