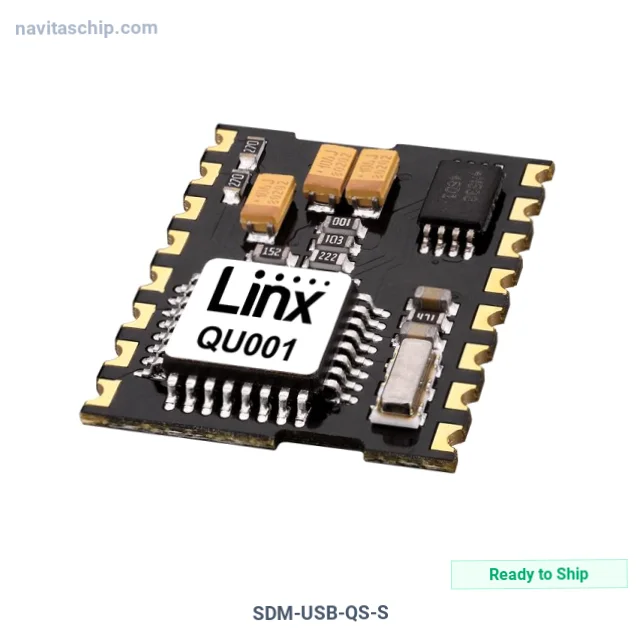

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SDM-USB-QS-S |
| Manufacturer | TE Connectivity Linx |
| NavitasChip Part Number | NAVI-613974 |
| Description | IC CONTROLLER USB MODULE |
| Spec | 16-SMD Module |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | TE Connectivity Linx |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| Protocol | USB |
| Function | Bridge, USB to UART |
| Interface | UART |
| Standards | USB 2.0 |
| Voltage - Supply | 4.35V ~ 5.25V |
| Current - Supply | 26mA |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | Module |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity Linx SDM-USB-QS-S Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SDM-USB-QS-S is an Interface Controller IC manufactured by TE Connectivity Linx. Integrated Circuit Controller USB Module, with 4.35V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.35V ~ 5.25V
- Interface: UART
- Operating Temperature: 0°C ~ 70°C
- Package: 16-SMD Module
- Device Package: Module
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
