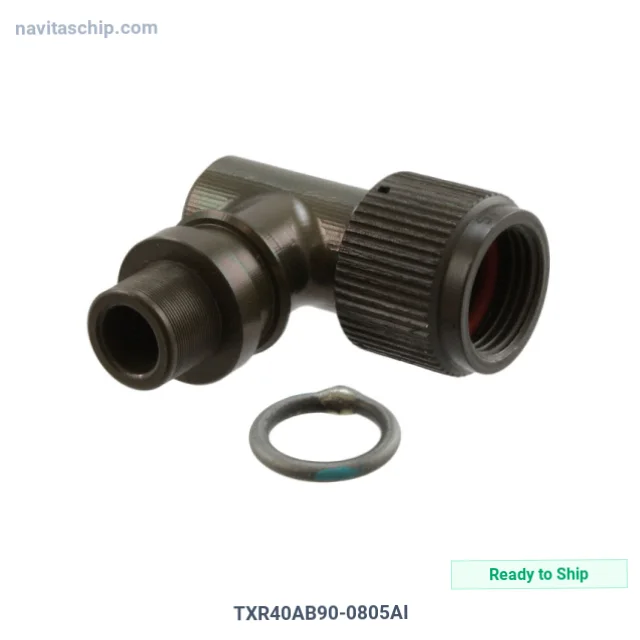

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TXR40AB90-0805AI |
| Manufacturer | TE Connectivity Raychem Cable Protection |
| NavitasChip Part Number | NAVI-2394747 |
| Description | CONN BACKSHELL ADPT SZ9 OLIV M12 |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | TE Connectivity Raychem Cable Protection |
| Package | Bulk |
| Product Status | Active |
| Type | Backshell, Heat Shrink Adapter |
| Diameter - Outside | 0.709" (18.00mm) |
| Shell Size - Insert | 9, A |
| Thread Size | M12x1 |
| Cable Exit | 90° |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shielding | Shielded |
| Color | Olive Drab |
| Features | Tinel Lock |
| Ingress Protection | Environment Resistant |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity Raychem Cable Protection TXR40AB90-0805AI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TXR40AB90-0805AI is a Circular Connector manufactured by TE Connectivity Raychem Cable Protection. Backshell Adpt, Size 9 Oliv M12.
Packaging: Factory Bulk · industry-standard protective packaging.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
